Tombstone, stevens eng, 15-3/4"X15-3/4"base, tooling

Submitter: (Roberta Prince)
What Roberta Prince is selling: Tombstone, stevens eng, 15-3/4"X15-3/4"base, tooling

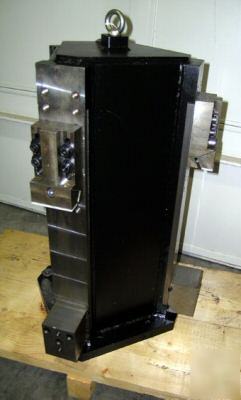

Liberty Machinery Company-You are looking at a Tombstone,Stevens Eng,15-3/4"x15-3/4"Base,3-Sided,Modlr,5"x6"x18"Max Part,'04-Condition - Used
Triangular Design Allows for Larger Part Clamping Without Interfering With
Each Other. Multiple Bolt Patterns Allow for a Variety of Part Sizes.
Slotted Bolt Holes in Clamps Allow for Fine Adjustment.
Base Dimensions 15-3/4" x 15-3/4"
Part Size - Maximum 5" x 6" x 18" Ea.
Number of Parts 1 ea. Mounting Surface
Part Cross Section - Maximum 5" x 6"
Clamp Type Wedge Style w/ Delrin Pad
Welded Steel Plate Construction
400 mm Square Base, 1.4" Thick Plate Steel
90 Deg, 130 Deg, 140 Deg Offset Angles
1/2" Diameter Grippers on Pivoting Clamp
Delrin Nose Pad on Wedge Style Clamp
